제품 상세 정보:
|
| 미디어 필터링: | 유리섬유 미디어 | 크기: | 1175x575x69mm |
|---|---|---|---|
| 액자: | 아연도금/알루미늄 | 제품명: | 미니 주름형 HEPA 필터 |
| 효율성: | H13-U15 | 두께: | 69/78/150/220 |
| 분할: | 핫메틀 접착제 | 애플리케이션: | AHU, HEPA 필터 박스.팬 필터 유닛, 클린룸 터미널 여과 |
| 강조하다: | 1175x575x69mm HEPA Air Filter,Less Than 200 Pa Initial Resistance HEPA Air Filter,Hot Metal Adhesive Partition HEPA Air Filter |
||

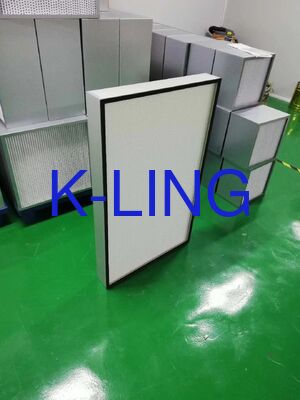

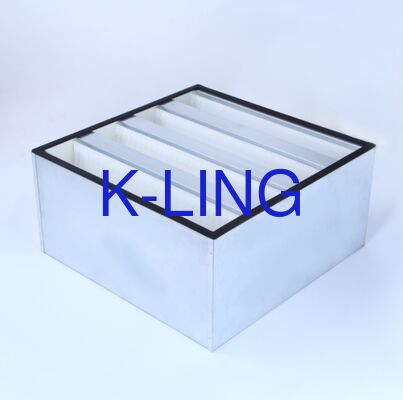

The Mini-Pleated HEPA Filter, also known as the Cleanoom Terminal Filtration Unit, delivers exceptional air purity for critical environments. Engineered with precision using advanced materials, this HEPA filter with clapboard structure meets stringent air quality standards in cleanrooms, laboratories, hospitals, and other sensitive applications.
Integrated diffuser plates ensure consistent face velocity (±20% variation at 0.45 m/s), preventing turbulence in sensitive environments.
Low outgassing materials (including borosilicate glass fiber) minimize contamination in semiconductor and pharmaceutical applications.
Extended service life (typically 12-18 months) achieved through deep pleating (40-75 mm) and large filtration area.
| Parameter | Specification |
|---|---|
| Product Name | Mini-Pleated HEPA Filter H14 |
| Alternative Name | Cleanoom Terminal Filtration Unit |
| Filtering Media | Glassfibre Media |
| Available Thickness | 69/78/150/220 mm |
| Particle Filtration | ≥ 0.3 µm |
| Faceguard | Diamond Shaped Metal Protective Net |
| Partition Material | Hot Metal Adhesive |
| Initial Resistance | Less Than 200 Pa |
| Gasket Material | PU / EVA Material / Gel Sealant |
| Efficiency Rating | H13-U15 (H14 air filter available) |
Prevents microbial contamination in packaging areas (dairy, ready meals). NSF-compliant materials withstand washdowns while H13 efficiency ensures product safety.
Maintains particle-free environments for gyroscope/optics assembly. Stainless steel frames resist vibration while ULPA efficiency controls calibration-affecting particles.
Essential for sterile packaging and implant production. Low-resistance designs (90-200 Pa) optimize HVAC costs in ISO Class 7-8 cleanrooms.
The KELING HEPA Air Filter delivers clean, contaminant-free air for laboratories, hospitals, manufacturing plants, and commercial buildings. Its advanced filtration technology provides consistent air purification with user-friendly features and competitive pricing.
KELING offers customizable HEPA Air Filter solutions (Model KEL-HF) with CE certification. Our product range includes:
Constructed with galvanized or aluminum frames and premium glassfibre media, these filters capture particles ≥ 0.3µm with initial resistance under 200 Pa. Packed securely in plywood cases, we offer:
